# 3.4.6 KSQL DB
It is a streaming database built on top of Apache Kafka that allows you to process and query real-time data using SQL-like queries.
#### **To Execute KSQL Request:**

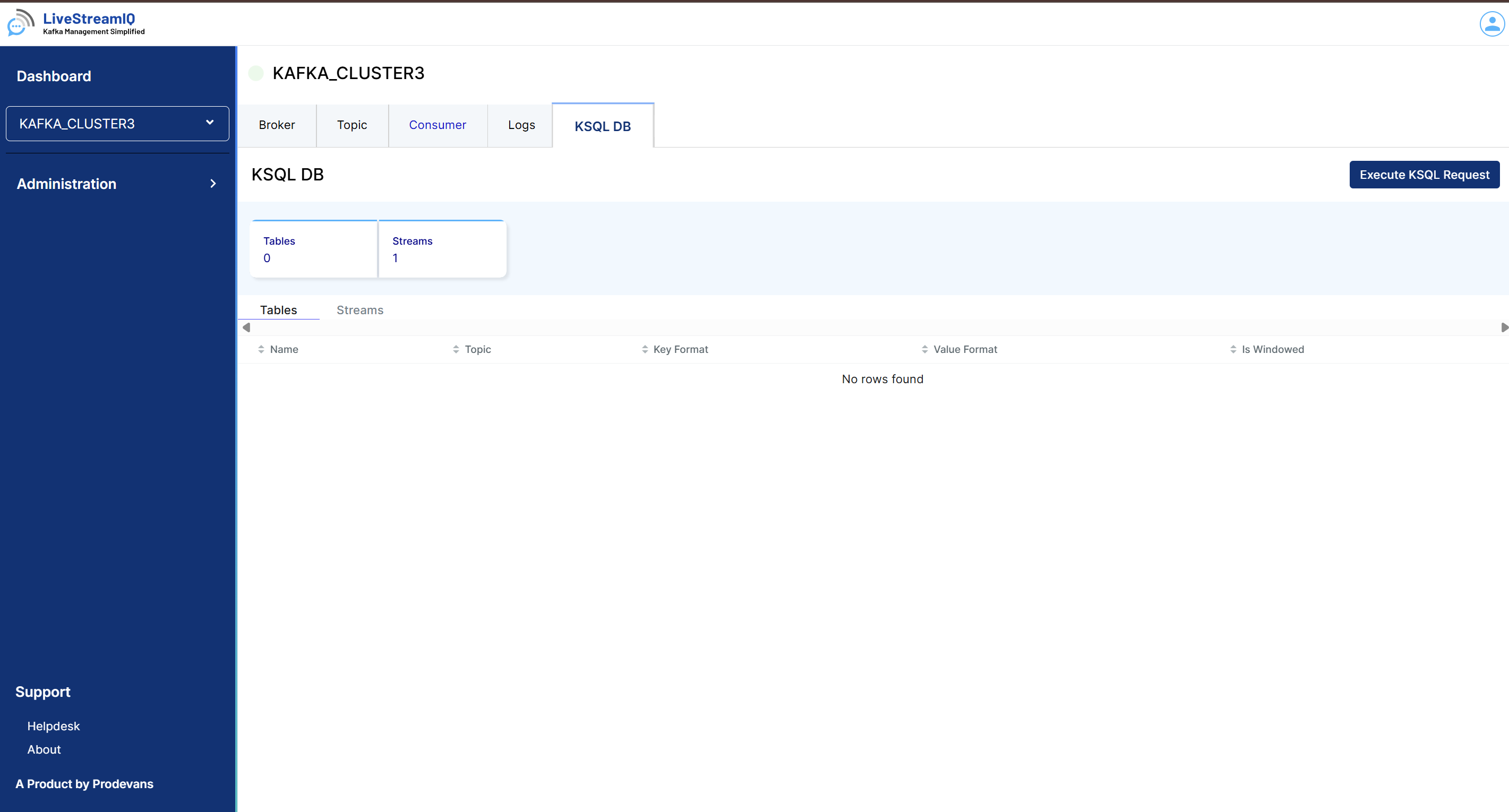

1. Click this button to execute KSQL queries and perform operations on Kafka data.
2. There are two section **Table** and **Streams**.
3. In **Tables** section, it displays the list of tables created in KSQL DB.
1. **Name**: Name of the KSQL table.
2. **Topic**: Kafka topic associated with the table.
3. **Key Format:** Format of the message key (Example: KAFKA).
4. **Value Format:** Format of the message data (Example: JSON).
5. **Is Windowed:** Shows whether the table uses windowing or not.
4. In **Streams** section, it displays the list of streams created in KSQL DB.
.png?alt=media)
1. **KSQL Editor:** Used to write KSQL queries.
2. **Stream Properties:**
1. Key: Defines the key field of the Kafka message.
2. Value: Defines the value field of the Kafka message.
3. Add Stream Property: Allows adding additional stream configurations.\
Sample Example to create a stream:
```
CREATE STREAM orders_stream (
order_id INT,
customer STRING,
amount DOUBLE
)
WITH (
KAFKA_TOPIC='orders',
VALUE_FORMAT='JSON'
);
```
3. **Buttons:**
1. Clear: Clears the query editor content.
2. Execute: Runs the KSQL query.
3. Execute KSQL Request: Executes the written KSQL request.
.png?alt=media)

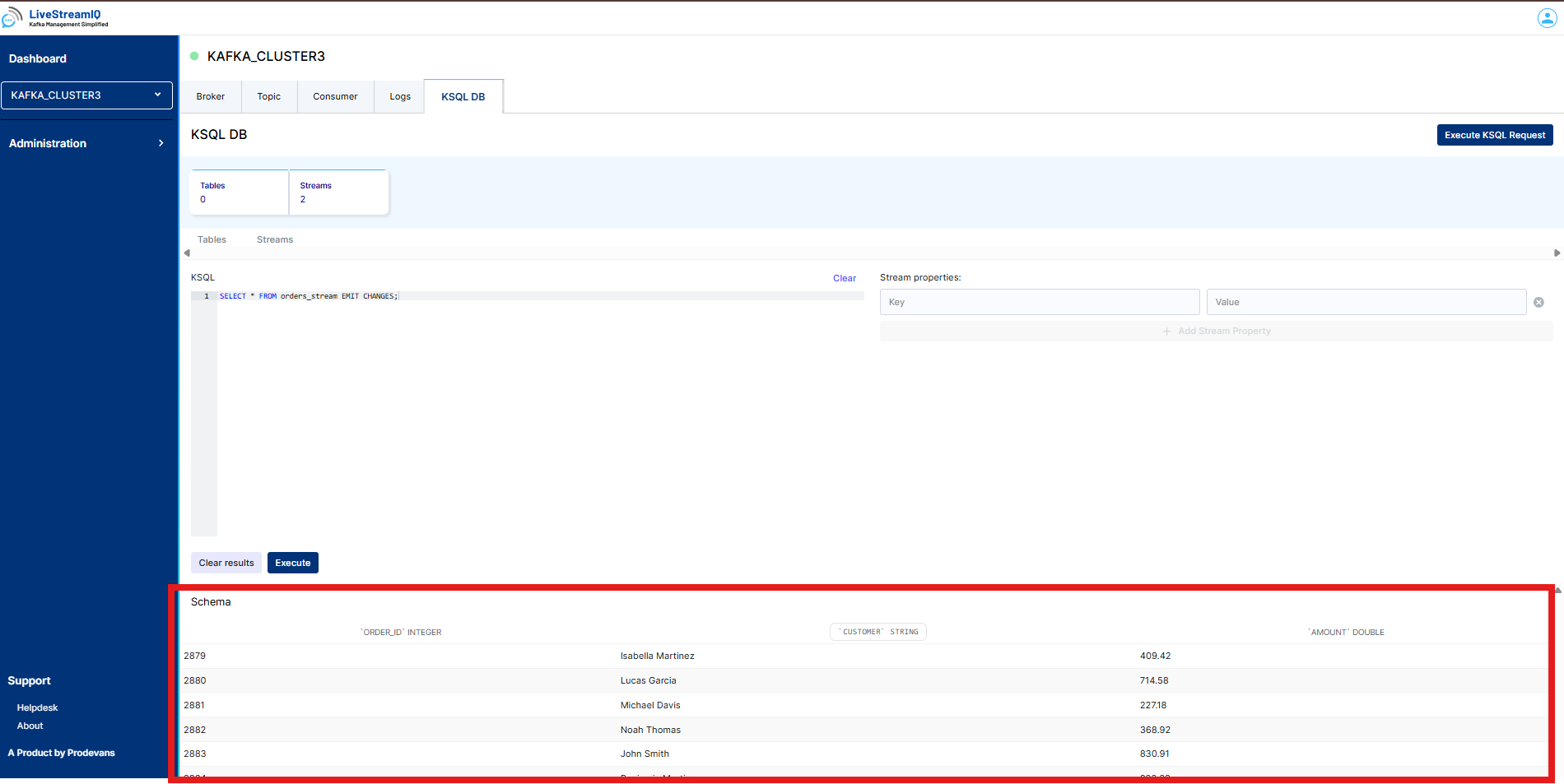

#### **KSQL DB Query Execution to continuously read events**
Users can execute KSQL queries to fetch and process real-time Kafka stream data.
The following Steps are
Step 1 - Enter the KSQL query in the editor.
Step 2 - Click the Execute button to run the query.
Step 3 - View the schema and real-time results below.
Sample Example:
```
SELECT * FROM orders_stream EMIT CHANGES;
```
*After executing the data, verify on the Schema console of KSQL that the real-time data stream is being produced.*
---
